Canadian Wood Council mass timber fire test performed as expected

The Canadian Wood Council hosted a full-scale fire test at the Canadian Explosives Research Lab in Ottawa, to observe the behaviour of mass timber construction exposed to fire.

To date, the majority of exposed mass timber compartment fire tests have simulated residential occupancies, says the organization. This test demonstrated the fire performance and fire dynamics in a typical occupied open-plan office space in a mass timber building.

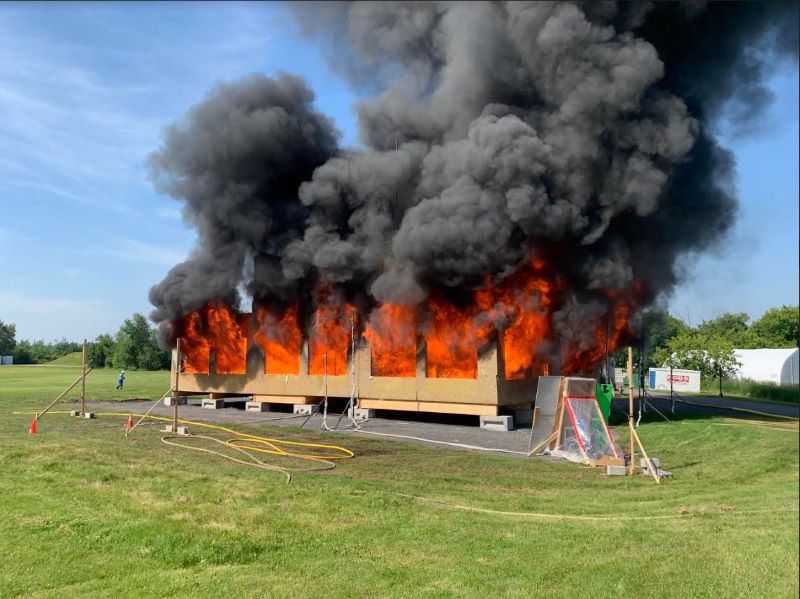

Mass timber structure during the fully developed fire.

The space is much larger than previous tests, both in the area and floor-to-ceiling height, complete with a large fire load of simulated furniture and other contents. This test provides insight into the fire dynamics in a larger space, typical of those seen in modern mass timber office buildings as opposed to research testing to date, which focused on smaller fire compartments with lower ventilation

The research fire test on mass timber performed as expected: the mass timber structure withstood the full burnout once the furnishings of the building were consumed, then the fire quickly died down and burned out. The fire largely burned out within the first hour, however, the test was continued for a full four hours to monitor for any potential re-ignition

As a research test, the structure was instrumented with 400 thermocouples and radiation sensors providing information to document the fire development.

It can be concluded that the fire performance of the mass timber structure was similar to that of noncombustible construction and confirms that mass timber can perform well under the very rare fire scenario in which the sprinkler system fails and the fire department is unable to respond.
